ADC Transmission Gate / Sample Switch

Sample switch / transmission gate for 8-bit ADC.

tg


🔗 Schematics

SPECIFICATIONS

Tranisent Specification

Parameter Min (Spec. / Sim.) Max (Sim. / Spec.) Unit Checks (total/pass/fail/NaN) Comment
Charge Injection Switch Close -0.005 / -0.0023 0.0011 / 0.005 V 315/100.0%/0.0%/0.0% Voltage injected to 10pF capacitor at switch close

Tranisent Specification [PEX]

Parameter Min (Spec. / Sim.) Max (Sim. / Spec.) Unit Checks (total/pass/fail/NaN) Comment
Charge Injection Switch Close -0.005 / -0.0024 0.001 / 0.005 V 315/100.0%/0.0%/0.0% Voltage injected to 10pF capacitor at switch close

PERFORMANCE CHARACTERISTICS

Transient Performance

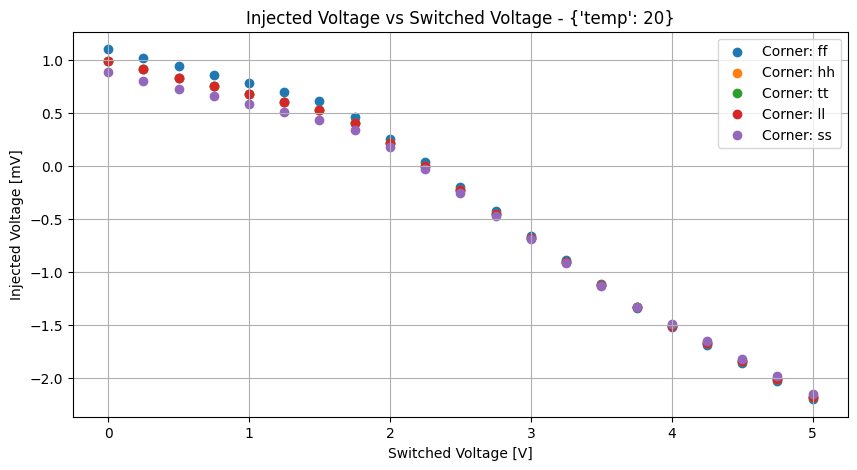

xyplot_v_swv_cigroup_('tt',-2),('ff',-2),('ss',-2),('ll',-2),('hh',_-2)__6d938d2a28ef851612412a8146e392bf
Voltage injected to 10pF capacitor at switch close.

Transient Performance [PEX]

xyplot_v_swv_cigroup_('tt',-2),('ff',-2),('ss',-2),('ll',-2),('hh',_-2)__7008795a58b548c6af7face94c06e2c1
Voltage injected to 10pF capacitor at switch close.
