Tiny Tapeout 8
Analog building-blocks for Tiny Tapeout 8:
Bandgap
Ref. Current Source
LDO
Ring Oscillator
🔗 Schematics
LVS
LVS-state: Netlists match uniquely.
🔗 LVS-report
SPECIFICATIONS
Transient Startup Specification
Parameter
Min (Spec. / Sim.)
Max (Sim. / Spec.)
Unit
Checks (total/pass/fail/NaN)
Comment
Max. Supply Current Analog
0.0 / 52.058
9669.268 / 300.0
uA
45/97.7778%/2.2222%/0.0%
Max. Supply Current Digital
0.0 / 1.821
4.001 / 300.0
uA
45/100.0%/0.0%/0.0%

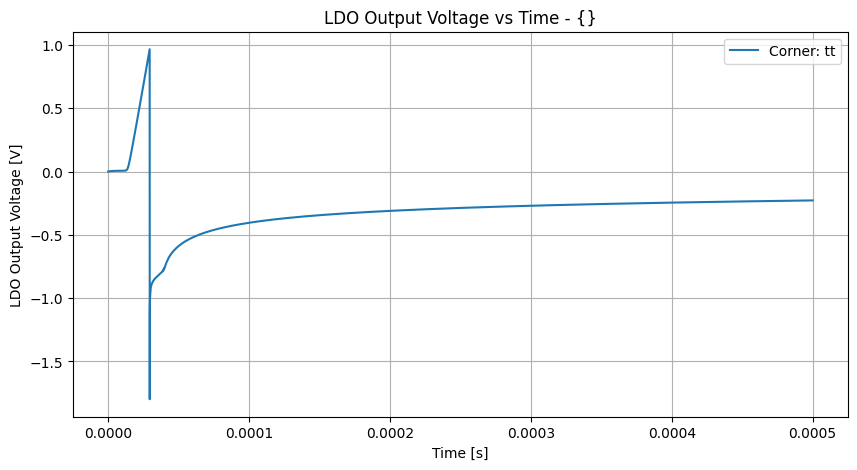

LDO Output Voltage
1.7 / -0.464309
3.305661 / 1.9
V
45/91.1111%/8.8889%/0.0%
LDO Output Overshoot
0.0 / 19.366
2389.278 / 200.0
mV
45/91.1111%/8.8889%/0.0%
Show specification violation details...
FAIL: Specification violation for parameter "Max. Supply Current Analog":FAIL: group:ff file:work/sim/tt08/tt08_tb.1_tran/batch_0/ff/tran.csv Index:0
FAIL: Specification violation for parameter "LDO Output Voltage":FAIL: group:ff file:work/sim/tt08/tt08_tb.1_tran/batch_0/ff/tran.csv Index:0 FAIL: group:ff file:work/sim/tt08/tt08_tb.1_tran/batch_0/ff/tran.csv Index:1 FAIL: group:ff file:work/sim/tt08/tt08_tb.1_tran/batch_0/ff/tran.csv Index:2 FAIL: group:tt file:work/sim/tt08/tt08_tb.1_tran/batch_0/tt/tran.csv Index:0
FAIL: Specification violation for parameter "LDO Output Overshoot":FAIL: group:ff file:work/sim/tt08/tt08_tb.1_tran/batch_0/ff/tran.csv Index:0 FAIL: group:ff file:work/sim/tt08/tt08_tb.1_tran/batch_0/ff/tran.csv Index:1 FAIL: group:ff file:work/sim/tt08/tt08_tb.1_tran/batch_0/ff/tran.csv Index:2 FAIL: group:tt file:work/sim/tt08/tt08_tb.1_tran/batch_0/tt/tran.csv Index:0
Transient Startup Specification (Monte Carlo)
Parameter
Min (Spec. / Sim.)
Max (Sim. / Spec.)
Unit
Checks (total/pass/fail/NaN)
Comment
Max. Supply Current Analog
0.0 / 217.763
238.159 / 300.0
uA
100/100.0%/0.0%/0.0%
Max. Supply Current Digital
0.0 / 1.301
3.727 / 300.0
uA
100/100.0%/0.0%/0.0%
LDO Output Voltage
1.7 / 1.656267
1.924619 / 1.9
V
100/93.0%/7.0%/0.0%
LDO Output Overshoot
0.0 / 14.878
92.775 / 200.0
mV
100/100.0%/0.0%/0.0%
Show specification violation details...
FAIL: Specification violation for parameter "LDO Output Voltage":FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.1_tran/batch_1/ff_mm/tran.csv Index:8 FAIL: group:ss_mm file:work/sim/tt08/tt08_tb.1_tran/batch_1/ss_mm/tran.csv Index:4 FAIL: group:hh_mm file:work/sim/tt08/tt08_tb.1_tran/batch_1/hh_mm/tran.csv Index:4 FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.1_tran/batch_0/ff_mm/tran.csv Index:9 FAIL: group:ss_mm file:work/sim/tt08/tt08_tb.1_tran/batch_0/ss_mm/tran.csv Index:2 FAIL: group:hh_mm file:work/sim/tt08/tt08_tb.1_tran/batch_0/hh_mm/tran.csv Index:7 FAIL: group:hh_mm file:work/sim/tt08/tt08_tb.1_tran/batch_0/hh_mm/tran.csv Index:8

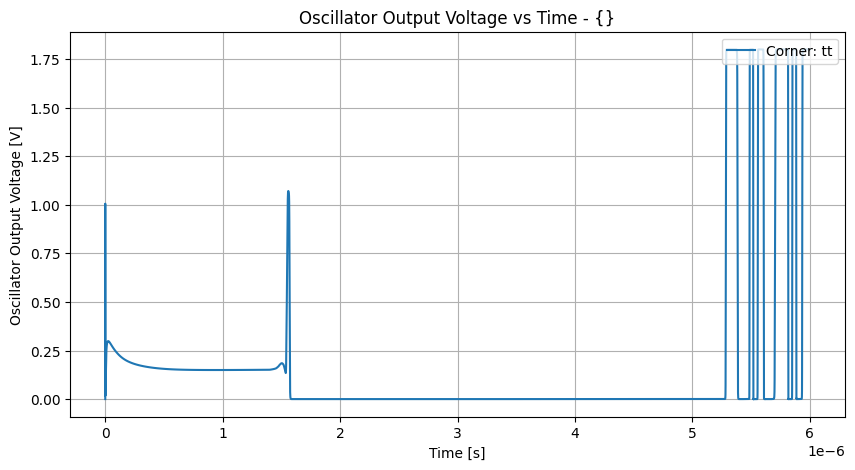

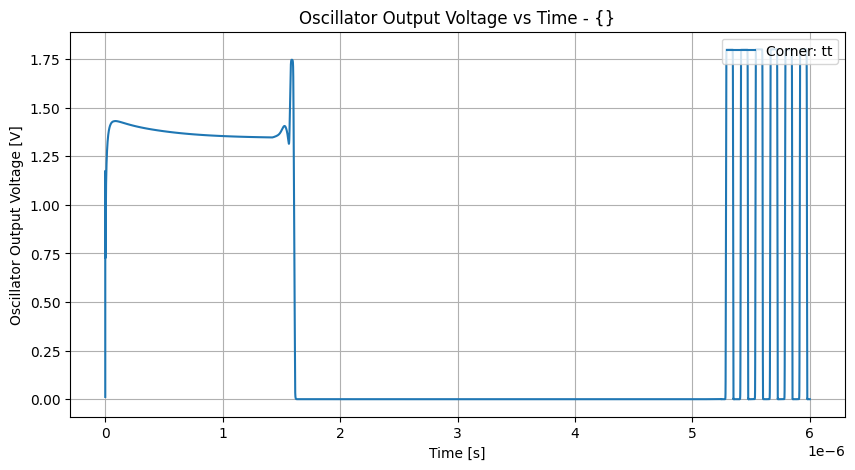

Transient Oscillator Specification
Parameter
Min (Spec. / Sim.)
Max (Sim. / Spec.)
Unit
Checks (total/pass/fail/NaN)
Comment
First High Pulse Duration
30.0 / 33.786
130.634 / 150.0
nS
15/100.0%/0.0%/0.0%
First Oscillator Period Duration
60.0 / 66.635
201.696 / 300.0
nS
15/100.0%/0.0%/0.0%
Duty-Cycle of First Oscillator Period
30 / 35.19961
70.83532 / 70
%
15/93.3333%/6.6667%/0.0%
Show specification violation details...
FAIL: Specification violation for parameter "Duty-Cycle of First Oscillator Period":FAIL: group:hh file:work/sim/tt08/tt08_tb.2_tran/batch_0/hh/tran.csv Index:0

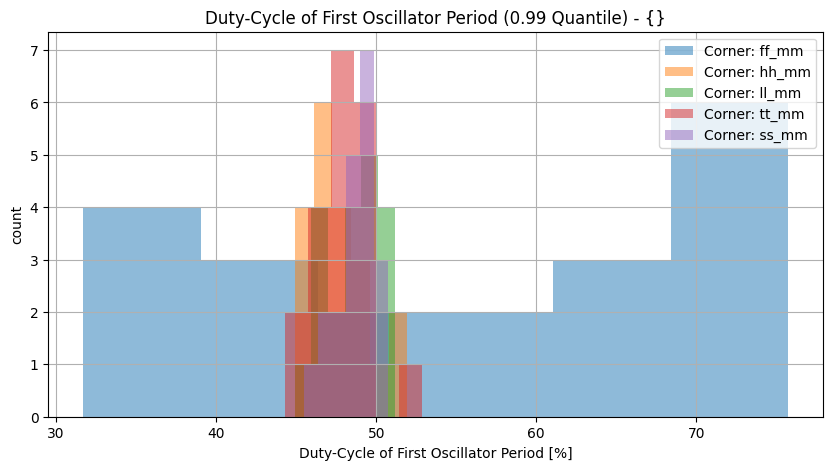

Transient Oscillator Specification (Monte Carlo)
Parameter
Min (Spec. / Sim.)
Max (Sim. / Spec.)
Unit
Checks (total/pass/fail/NaN)
Comment
First High Pulse Duration
30.0 / 36.532
147.286 / 150.0
nS
100/100.0%/0.0%/0.0%

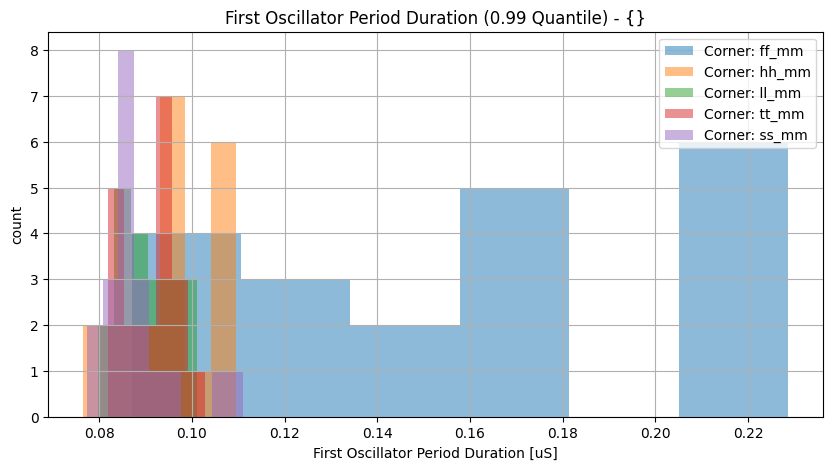

First Oscillator Period Duration
60.0 / 76.605
228.611 / 300.0
nS
100/100.0%/0.0%/0.0%
Duty-Cycle of First Oscillator Period
30 / 31.70048
75.72283 / 70
%
100/94.0%/6.0%/0.0%
Show specification violation details...
FAIL: Specification violation for parameter "Duty-Cycle of First Oscillator Period":FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.2_tran/batch_1/ff_mm/tran.csv Index:0 FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.2_tran/batch_1/ff_mm/tran.csv Index:7 FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.2_tran/batch_1/ff_mm/tran.csv Index:8 FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.2_tran/batch_0/ff_mm/tran.csv Index:0 FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.2_tran/batch_0/ff_mm/tran.csv Index:2 FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.2_tran/batch_0/ff_mm/tran.csv Index:7
Transient Startup Specification [PEX]
Parameter
Min (Spec. / Sim.)
Max (Sim. / Spec.)
Unit
Checks (total/pass/fail/NaN)
Comment
Max. Supply Current Analog
0.0 / 212.507
248.405 / 300.0
uA
45/100.0%/0.0%/0.0%

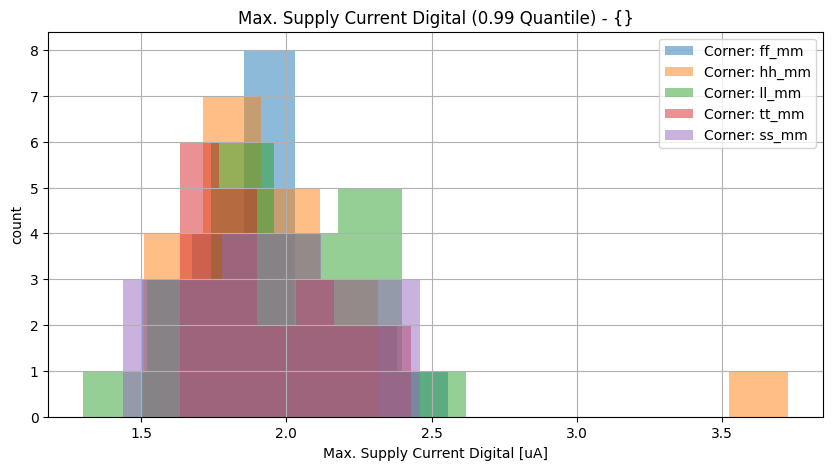

Max. Supply Current Digital
0.0 / 1.822
8.234 / 300.0
uA
45/100.0%/0.0%/0.0%

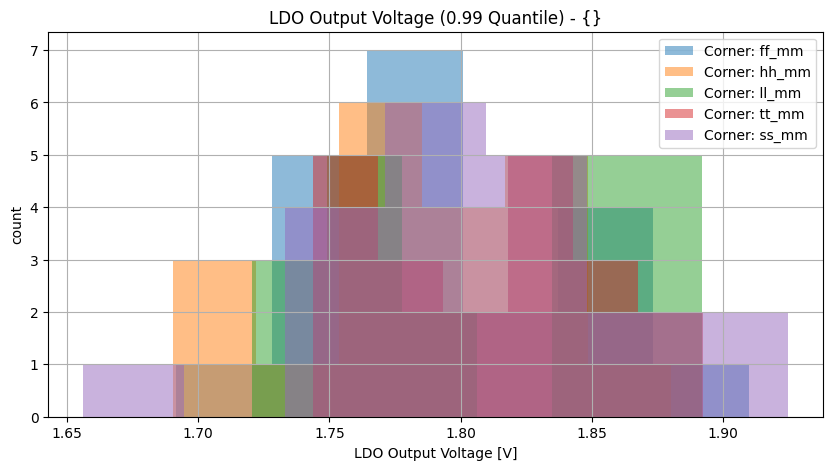

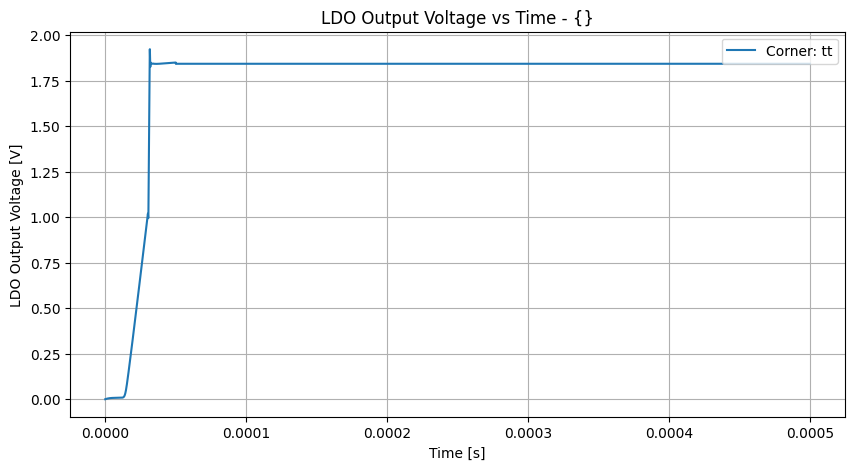

LDO Output Voltage
1.7 / 1.837729
1.861987 / 1.9
V
45/100.0%/0.0%/0.0%

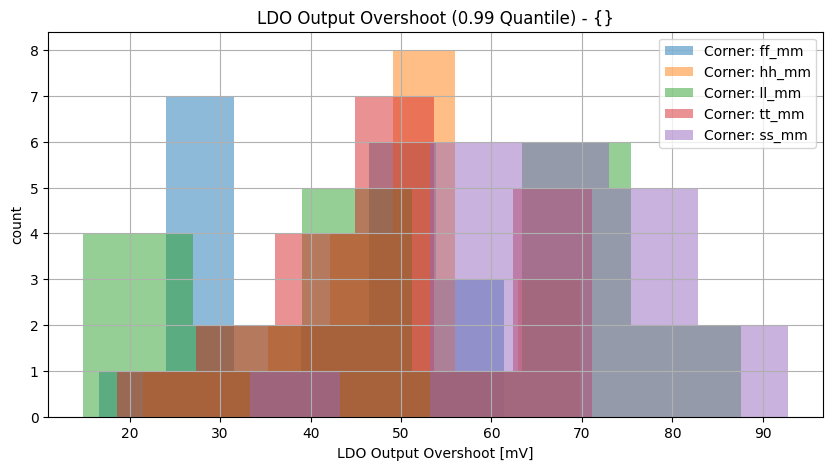

LDO Output Overshoot
0.0 / 19.734
112.841 / 200.0
mV
45/100.0%/0.0%/0.0%
Transient Startup Specification (Monte Carlo) [PEX]
Parameter
Min (Spec. / Sim.)
Max (Sim. / Spec.)
Unit
Checks (total/pass/fail/NaN)
Comment

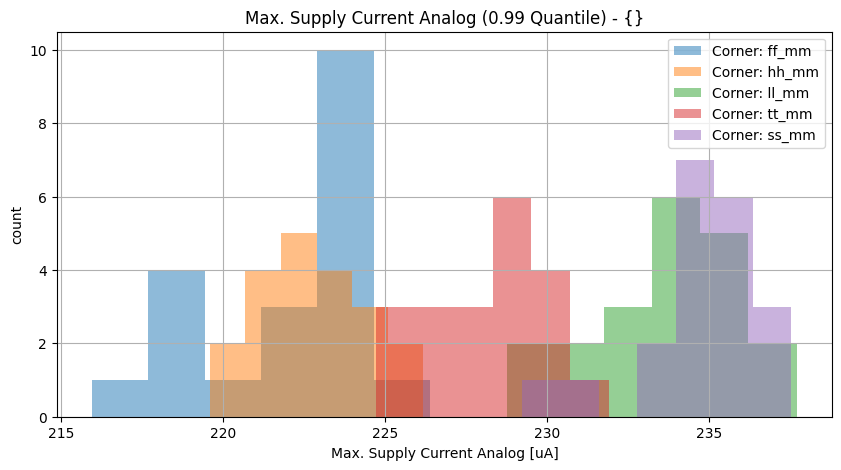

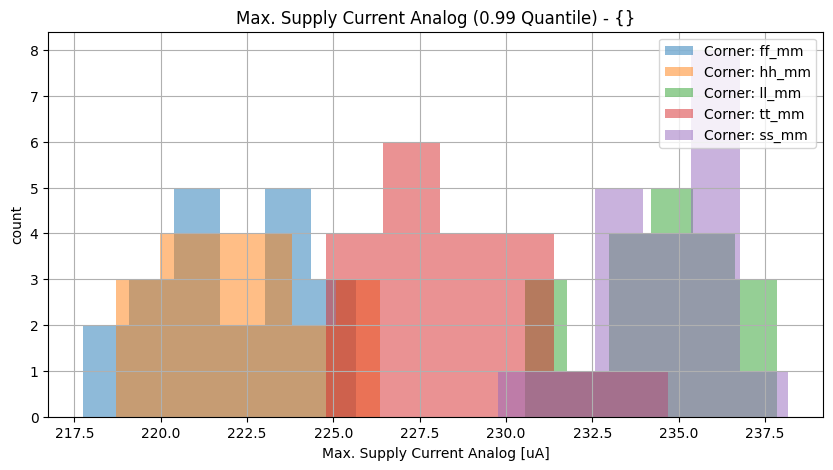

Max. Supply Current Analog
0.0 / 215.95
237.701 / 300.0
uA
100/100.0%/0.0%/0.0%

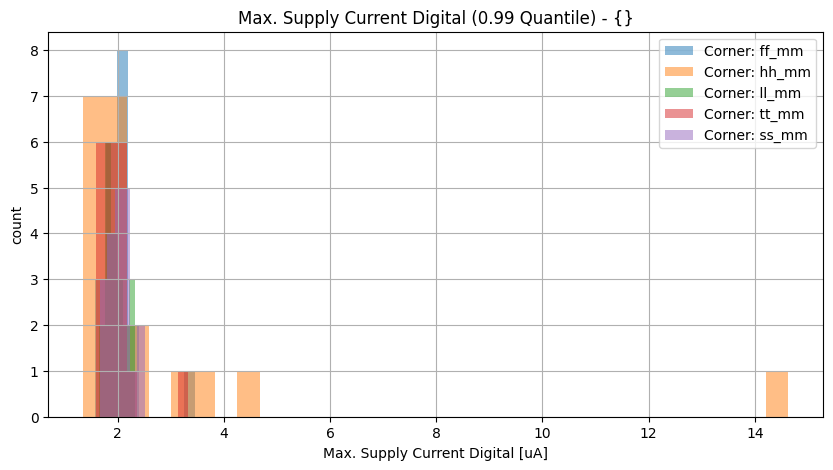

Max. Supply Current Digital
0.0 / 1.35
14.625 / 300.0
uA
100/100.0%/0.0%/0.0%

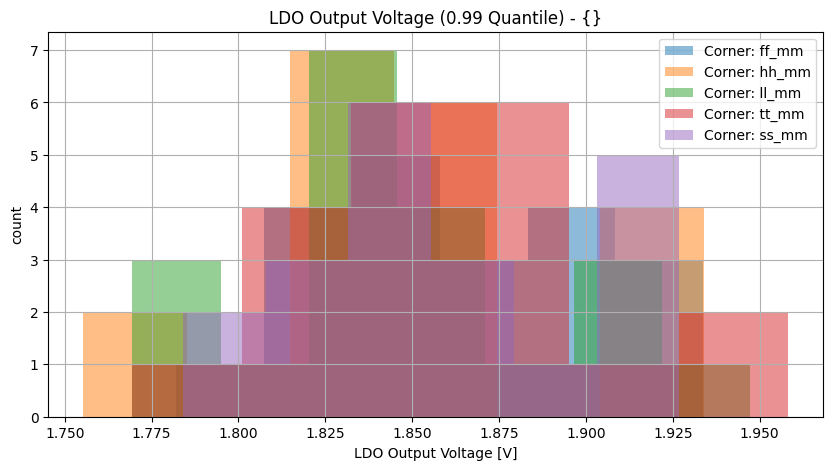

LDO Output Voltage
1.7 / 1.755361
1.958109 / 1.9
V
100/81.0%/19.0%/0.0%

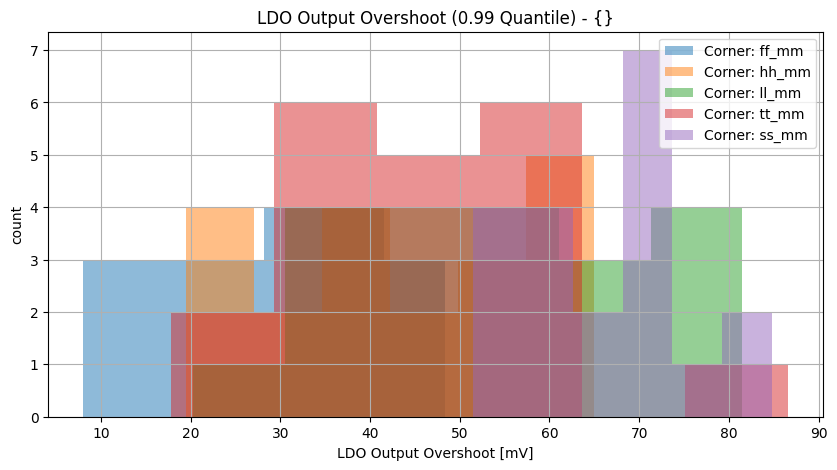

LDO Output Overshoot
0.0 / 8.045
86.579 / 200.0
mV
100/100.0%/0.0%/0.0%
Show specification violation details...
FAIL: Specification violation for parameter "LDO Output Voltage":FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/ff_mm/tran.csv Index:1 FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/ff_mm/tran.csv Index:7 FAIL: group:ss_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/ss_mm/tran.csv Index:0 FAIL: group:ss_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/ss_mm/tran.csv Index:3 FAIL: group:ss_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/ss_mm/tran.csv Index:5 FAIL: group:ss_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/ss_mm/tran.csv Index:7 FAIL: group:hh_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/hh_mm/tran.csv Index:6 FAIL: group:hh_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/hh_mm/tran.csv Index:9 FAIL: group:tt_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/tt_mm/tran.csv Index:6 FAIL: group:ll_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_1/ll_mm/tran.csv Index:0 FAIL: group:ff_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/ff_mm/tran.csv Index:6 FAIL: group:ss_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/ss_mm/tran.csv Index:4 FAIL: group:ss_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/ss_mm/tran.csv Index:7 FAIL: group:hh_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/hh_mm/tran.csv Index:0 FAIL: group:hh_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/hh_mm/tran.csv Index:9 FAIL: group:tt_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/tt_mm/tran.csv Index:3 FAIL: group:tt_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/tt_mm/tran.csv Index:6 FAIL: group:ll_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/ll_mm/tran.csv Index:2 FAIL: group:ll_mm file:work/sim/tt08/tt08_tb.1_tran_ext/batch_0/ll_mm/tran.csv Index:7
Transient Oscillator Specification [PEX]
Parameter
Min (Spec. / Sim.)
Max (Sim. / Spec.)
Unit
Checks (total/pass/fail/NaN)
Comment
First High Pulse Duration
30.0 / 0.0
69.964 / 150.0
nS
15/93.3333%/6.6667%/0.0%
First Oscillator Period Duration
60.0 / 0.0
146.614 / 300.0
nS
15/93.3333%/6.6667%/0.0%
Duty-Cycle of First Oscillator Period
30 / 0.0
50.27352 / 70
%
15/93.3333%/6.6667%/0.0%
Show specification violation details...
FAIL: Specification violation for parameter "First High Pulse Duration":FAIL: group:ll file:work/sim/tt08/tt08_tb.2_tran_ext/batch_0/ll/tran.csv Index:0
FAIL: Specification violation for parameter "First Oscillator Period Duration":FAIL: group:ll file:work/sim/tt08/tt08_tb.2_tran_ext/batch_0/ll/tran.csv Index:0
FAIL: Specification violation for parameter "Duty-Cycle of First Oscillator Period":FAIL: group:ll file:work/sim/tt08/tt08_tb.2_tran_ext/batch_0/ll/tran.csv Index:0
Transient Oscillator Specification (Monte Carlo) [PEX]
Parameter
Min (Spec. / Sim.)
Max (Sim. / Spec.)
Unit
Checks (total/pass/fail/NaN)
Comment

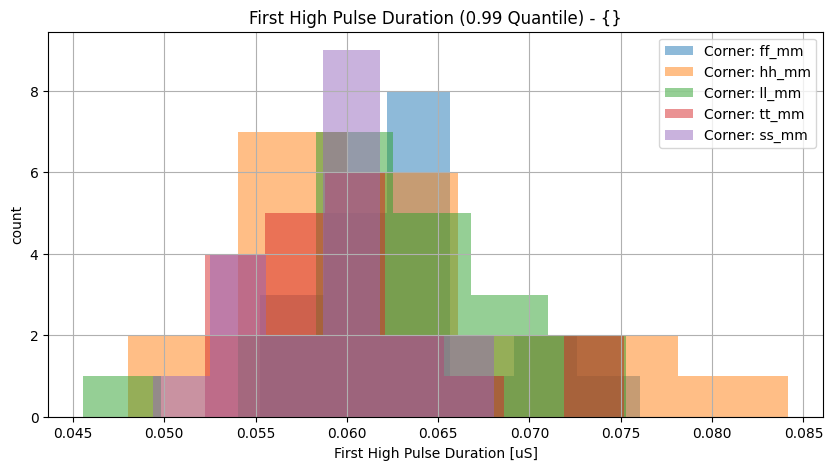

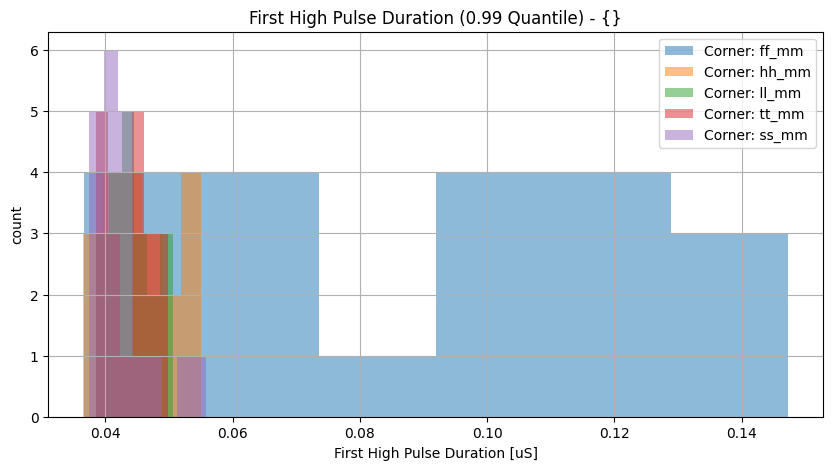

First High Pulse Duration
30.0 / 45.575
84.152 / 150.0
nS
100/100.0%/0.0%/0.0%

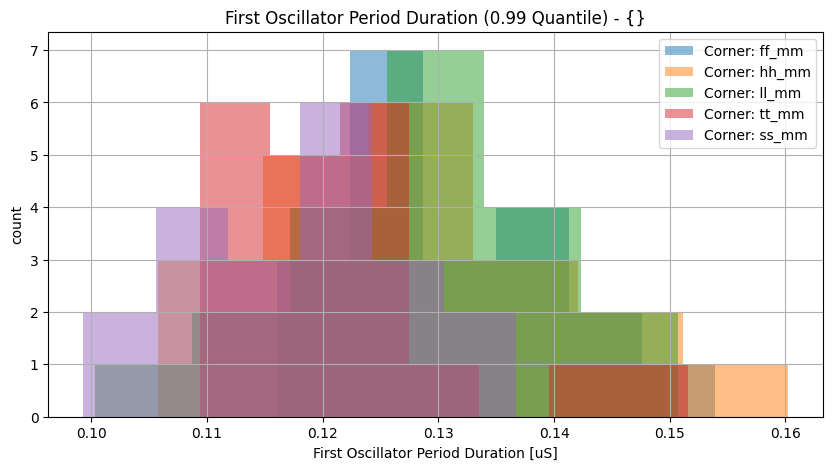

First Oscillator Period Duration
60.0 / 99.328
160.21 / 300.0
nS
100/100.0%/0.0%/0.0%

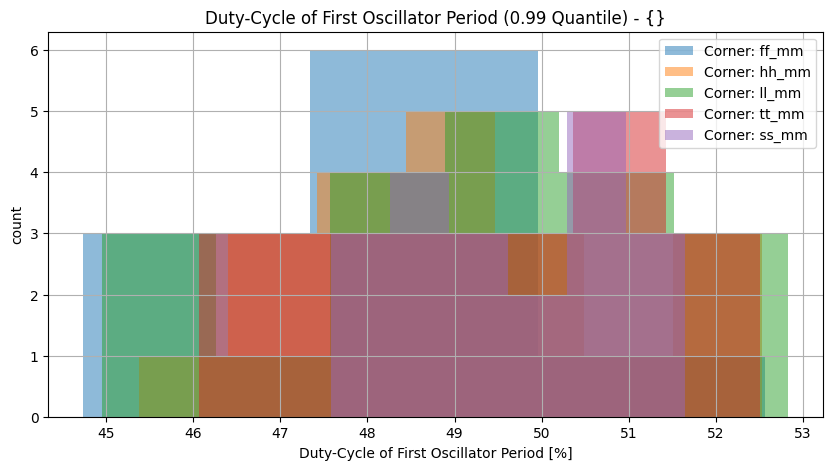

Duty-Cycle of First Oscillator Period
30 / 44.73777
52.82901 / 70
%
100/100.0%/0.0%/0.0%
