ASIC Artefacts

Ring Oscillator

Ring oscillator with enable pin.

riosc


🔗 Schematics

LVS

LVS-state: Netlists match uniquely.

🔗 LVS-report

SPECIFICATIONS

Tranisent Specification

Parameter Min (Spec. / Sim.) Max (Sim. / Spec.) Unit Checks (total/pass/fail/NaN) Comment
High Duration 10.0 / 35.648 50.427 / 100.0 ns 45/100.0%/0.0%/0.0% Last period before oscillator disable
Period Duration 20.0 / 73.855 106.544 / 200.0 ns 45/100.0%/0.0%/0.0% First period after oscillator enable
Duty-Cycle 40 / 45.229 49.95 / 60 % 45/100.0%/0.0%/0.0% First period after oscillator enable

Transient Specification (Monte Carlo)

Parameter Min (Spec. / Sim.) Max (Sim. / Spec.) Unit Checks (total/pass/fail/NaN) Comment
High Duration 10.0 / 33.927 51.963 / 100.0 ns 500/100.0%/0.0%/0.0% Last period before oscillator disable
Period Duration 20.0 / 72.511 107.069 / 200.0 ns 500/100.0%/0.0%/0.0% First period after oscillator enable
Duty-Cycle 40 / 46.229 50.952 / 60 % 500/100.0%/0.0%/0.0% First period after oscillator enable

Tranisent Specification (PEX)

Parameter Min (Spec. / Sim.) Max (Sim. / Spec.) Unit Checks (total/pass/fail/NaN) Comment
High Duration 10.0 / 48.316 66.493 / 100.0 ns 45/100.0%/0.0%/0.0% Last period before oscillator disable
Period Duration 20.0 / 98.712 139.44 / 200.0 ns 45/100.0%/0.0%/0.0% First period after oscillator enable
Duty-Cycle 40 / 46.187 50.945 / 60 % 45/100.0%/0.0%/0.0% First period after oscillator enable

Transient Specification (Monte Carlo, PEX)

Parameter Min (Spec. / Sim.) Max (Sim. / Spec.) Unit Checks (total/pass/fail/NaN) Comment
High Duration 10.0 / 44.629 59.831 / 100.0 ns 250/100.0%/0.0%/0.0% Last period before oscillator disable
Period Duration 20.0 / 92.108 122.932 / 200.0 ns 250/100.0%/0.0%/0.0% First period after oscillator enable
Duty-Cycle 40 / 45.938 51.462 / 60 % 250/100.0%/0.0%/0.0% First period after oscillator enable

PERFORMANCE CHARACTERISTICS

Transient Performance

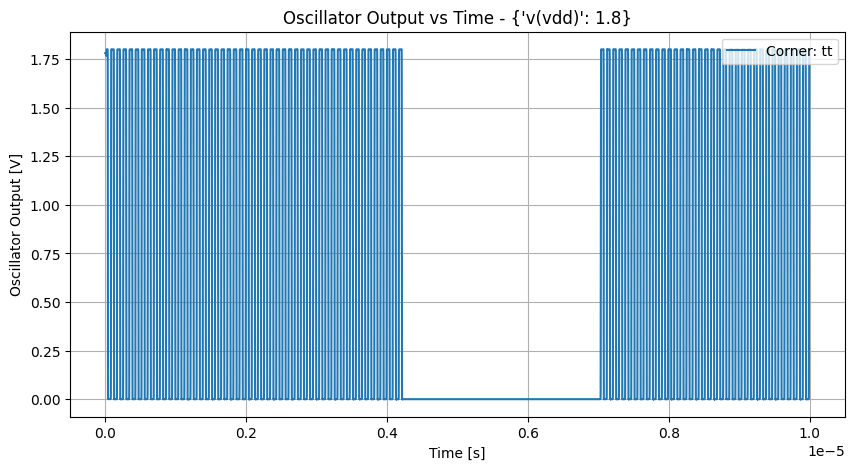

xyplot_timev(osc)group_('tt',_-2)__8b374d1792399df7627c2edbbac266ec

Transient Performance (Monte Carlo)

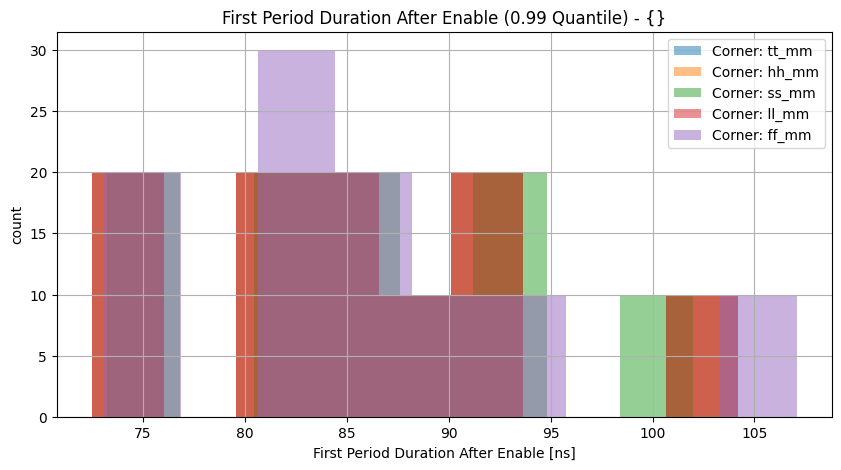

histplot_first_periodgroup_('ff_mm',-2),('hh_mm',-2),('tt_mm',-2),('ll_mm',-2),('ss_mm',_-2)__cf2bc3329332c7b0e8d8077c1eb5d0bf

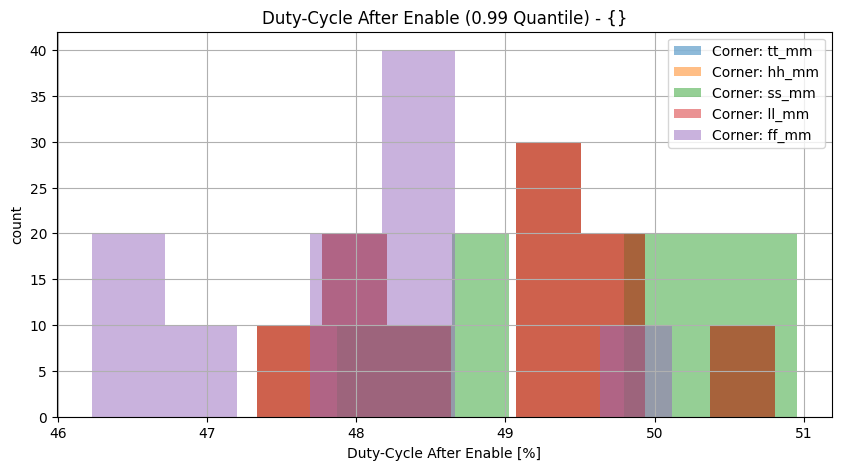

histplot_first_dutycyclegroup_('ff_mm',-2),('hh_mm',-2),('tt_mm',-2),('ll_mm',-2),('ss_mm',_-2)__cf2bc3329332c7b0e8d8077c1eb5d0bf

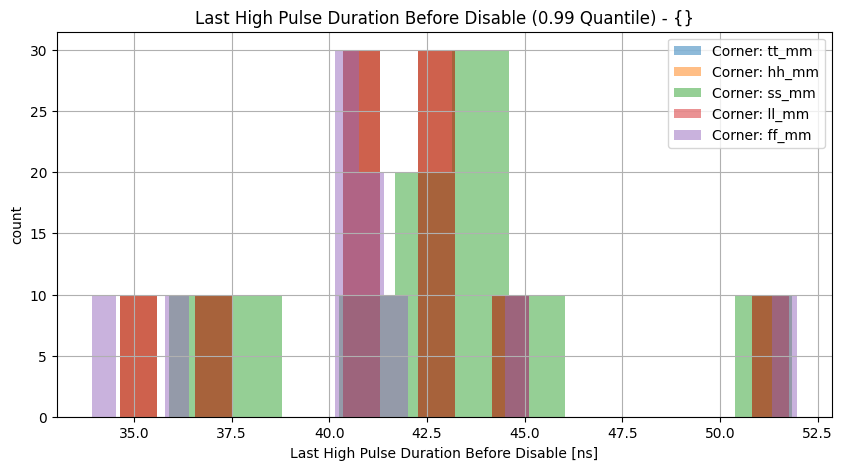

histplot_last_highgroup_('ff_mm',-2),('hh_mm',-2),('tt_mm',-2),('ll_mm',-2),('ss_mm',_-2)__cf2bc3329332c7b0e8d8077c1eb5d0bf
