Power-on-Reset
Simple power-on-reset.

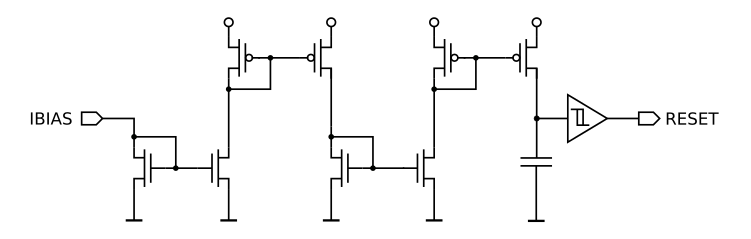

🔗 Schematics
Show Tool Versions...
xschem: 3.4.6
ngspice: 44.2
magic: 8.3.539
netgen: 1.5.293
ihpopenpdk: dev
LVS
LVS-state: Netlists match uniquely.
🔗 LVS-report
SPECIFICATIONS

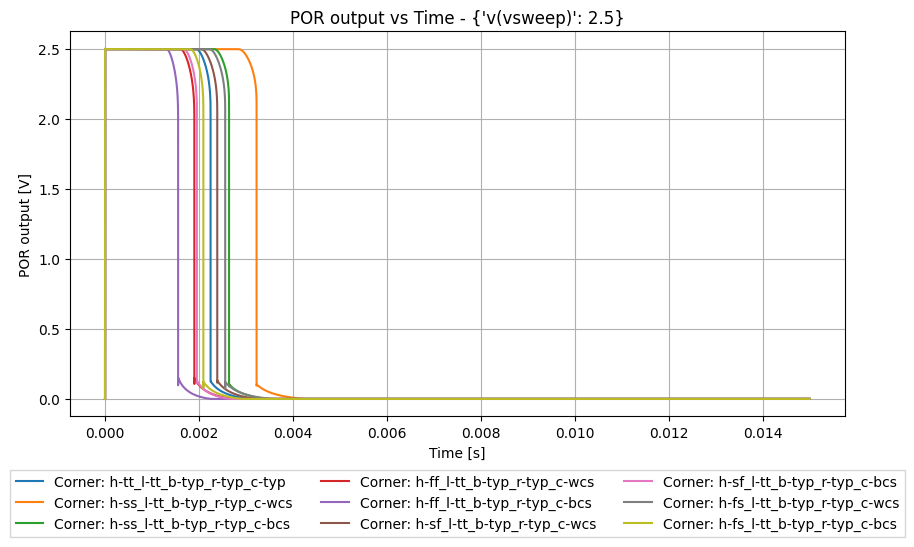

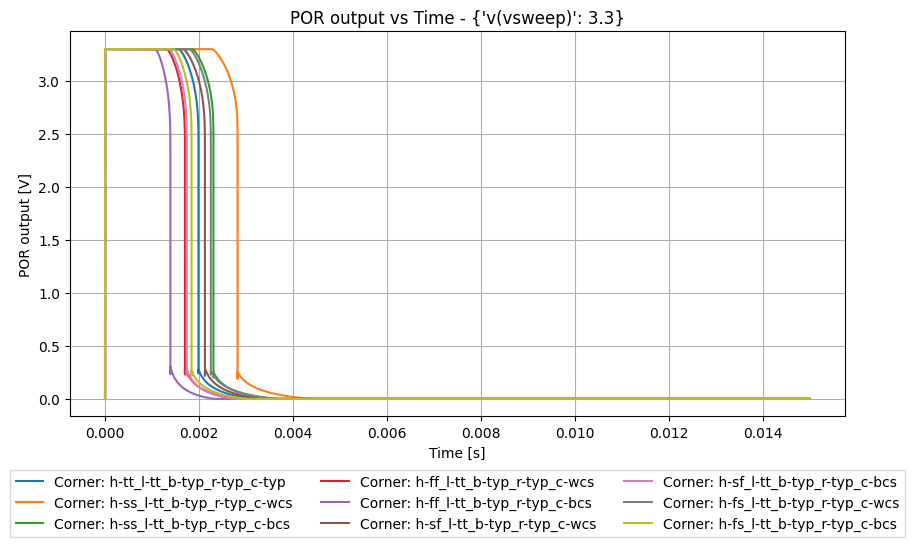

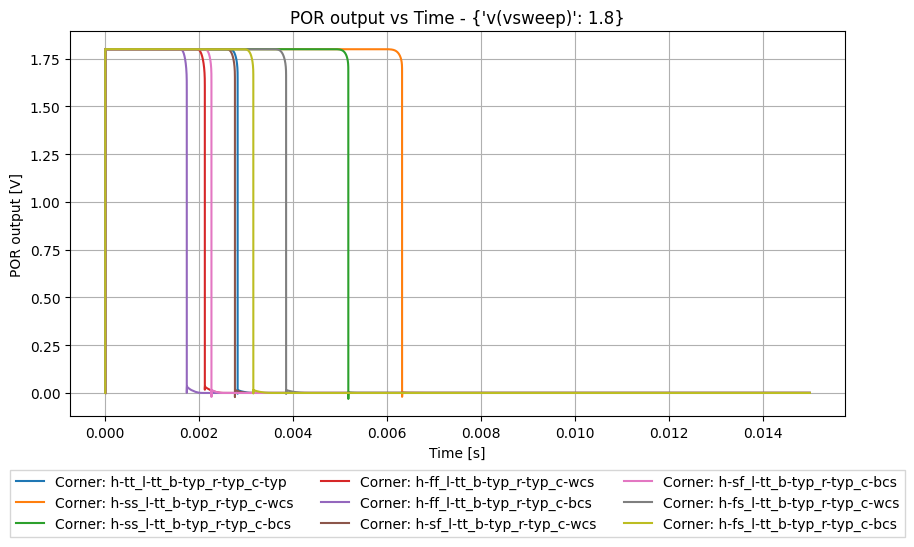

Transient Specification
| Parameter |
Min (Spec. / Sim.) |
|
Max (Sim. / Spec.) |
Unit |
Checks (total/pass/fail/NaN) |
Comment |
| POR Time |
0.5 / 1.391 |
|
6.32 / 10.0 |
ms |
27/100.0%/0.0%/0.0% |
|
Transient Specification (Monte-Carlo)
| Parameter |
Min (Spec. / Sim.) |
|
Max (Sim. / Spec.) |
Unit |
Checks (total/pass/fail/NaN) |
Comment |
| POR Time |
0.5 / 1.805 |
|
2.74 / 10.0 |
ms |
20/100.0%/0.0%/0.0% |
|

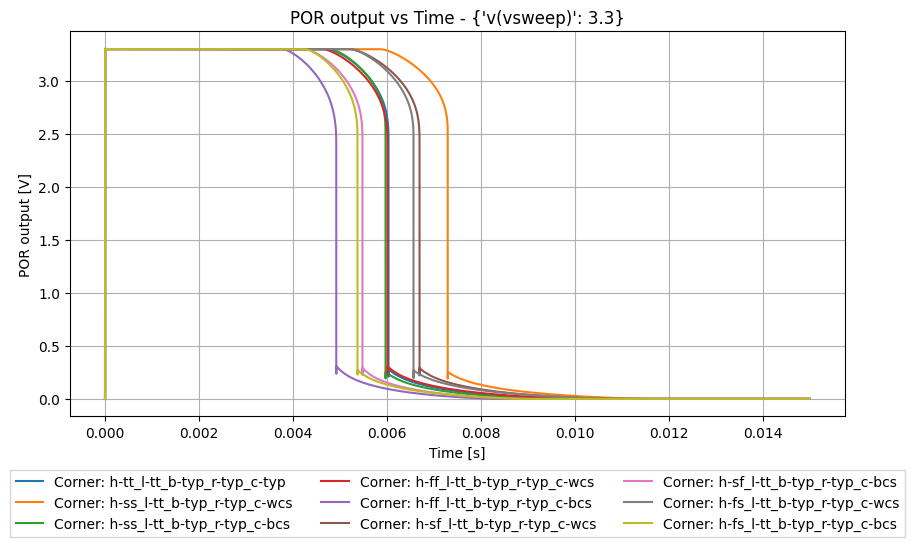

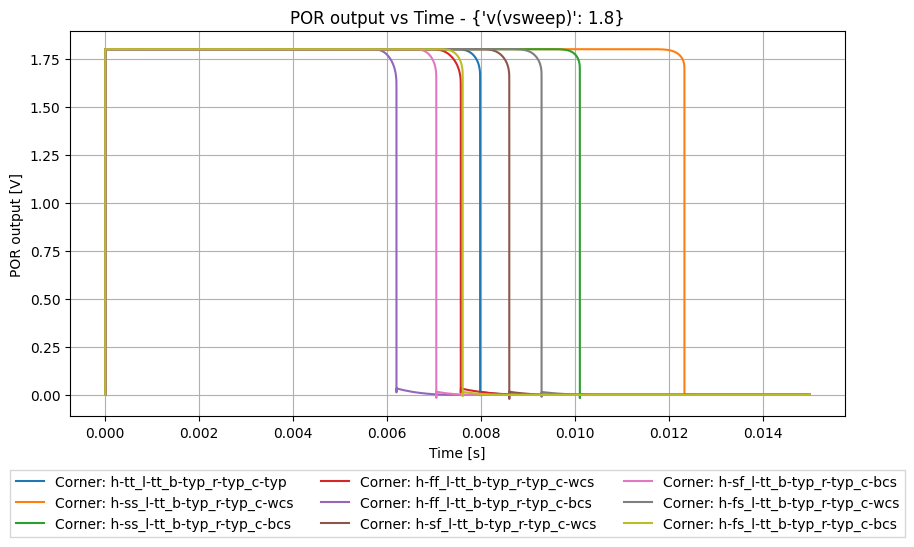

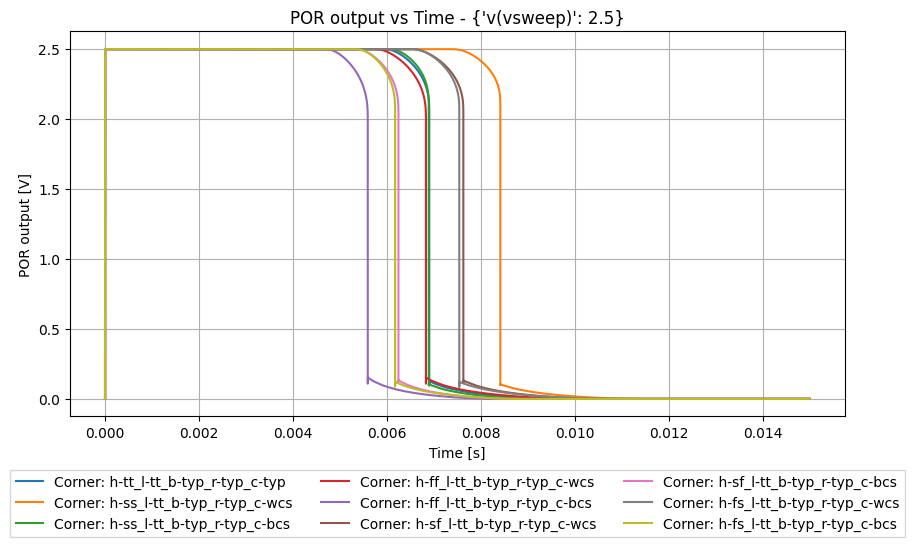

Transient Specification [PEX]
| Parameter |
Min (Spec. / Sim.) |
|
Max (Sim. / Spec.) |
Unit |
Checks (total/pass/fail/NaN) |
Comment |
| POR Time |
0.5 / 4.924 |
|
12.331 / 10.0 |
ms |
27/92.5926%/7.4074%/0.0% |
|
Show specification violation details...
FAIL: Specification violation for parameter "POR Time":
FAIL: group:h-ss_l-tt_b-typ_r-typ_c-wcs file:work/sim/por/por_tb.1_tranext/batch_0/h-ss_l-tt_b-typ_r-typ_c-wcs/tran.csv Index:0
FAIL: group:h-ss_l-tt_b-typ_r-typ_c-bcs file:work/sim/por/por_tb.1_tranext/batch_0/h-ss_l-tt_b-typ_r-typ_c-bcs/tran.csv Index:0
Transient Specification (Monte-Carlo) [PEX]
| Parameter |
Min (Spec. / Sim.) |
|
Max (Sim. / Spec.) |
Unit |
Checks (total/pass/fail/NaN) |
Comment |
| POR Time |
0.5 / 2.919 |
|
8.031 / 10.0 |
ms |
20/100.0%/0.0%/0.0% |
|
...
...
...
...
